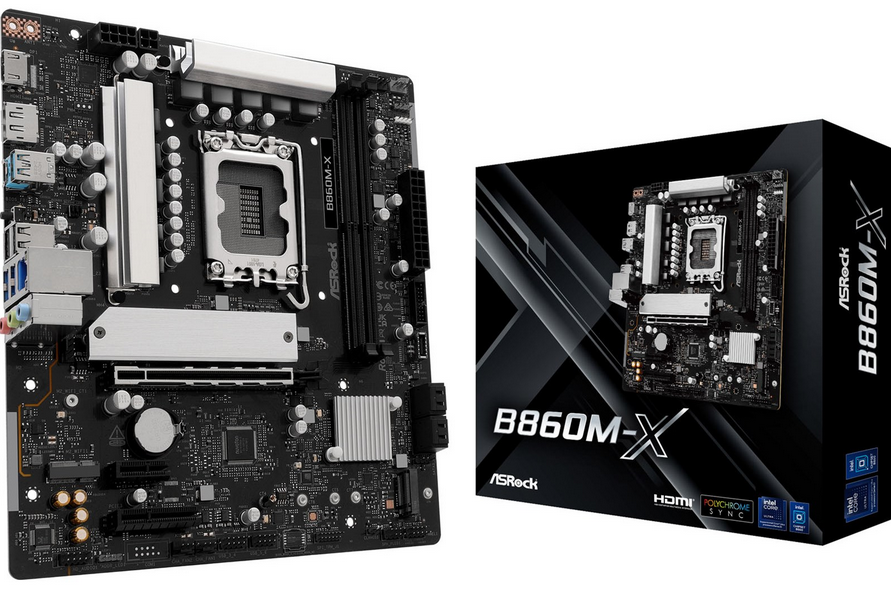

ASRock B860M-X
ASRock B860M-X
ASRock B860M-X

ASRock B860M-X

Auf Anfrage per Telefon / Email Auf Anfrage per Telefon / Email
Versandgewicht:
2 kg je Stück
128,90 EUR

inkl. 19% MwSt. zzgl. Versand

Auf den Merkzettel
Beschreibung
  • Einzigartige Features
    Hervorragende Produktivität
    - PCIe Gen5 (M.2)
    - Dual Channel DDR5
    Solide Haltbarkeit
    - 7+1+1+1+1 Power Phase
    Ultraschnelle Konnektivität
    - 2.5G LAN
    EZ-Update
    - BIOS Flashback Button
    - ASRock Auto-Treiber-Installer
    EZ Troubleshooter
    - ASRock Post Status Checker
  • CPU
    - Supports Intel® Core™ Ultra Processors (Series 2) (LGA1851)
    - Supports Intel® Hybrid Technology
    - Supports Intel® Turbo Boost Max 3.0 Technology
    - Supports Intel® Thermal Velocity Boost (TVB)
    - Supports Intel® Adaptive Boost-Technologie (ABT)
    - Integrierte NPU für dedizierte KI-Beschleunigung
  • Chipsatz
    - Intel® B860
  • Arbeitsspeicher
    - Dual Channel DDR5 Memory Technology
    - 2 x DDR5 DIMM Slots
    - Supports DDR5 non-ECC, un-buffered memory up to 9066+(OC)*
    - Supports Clocked Unbuffered DIMM (CUDIMM)
    - Max. capacity of system memory: 128GB
    - Supports Intel® Extreme Speicherprofile (XMP) 3.0x

    *1DPC 1R Up to 9066+ MHz (OC), 6400 MHz Natively. 1DPC 2R Up to 6800+ MHz (OC), 6400 MHz Natively.
  • BIOS
    - 256Mb AMI UEFI Legal BIOS with GUI support
  • Grafik
    - Intel® Xe LPG Graphik-Architektur
    - 1 x HDMI 2.1 TMDS/FRL 8G Kompatibel, supports HDR, HDCP 2.3 and max. Auflösung up to 4K 120Hz
    - 1 x DisplayPort 1.4 with DSC (Komprimiert), supports HDCP 2.3 and max. Auflösung up to 8K 60Hz / 5K 120Hz

    *Intel® UHD Graphics Built-in Visuals und die VGA-Ausgänge können nur bei der Verwendung von CPUs mit integrierter GPU-Einheit genutzt werden.
  • Audio
    - 7.1 CH HD Audio (Realtek ALC897 Audio Codec)
  • LAN
    - 2.5 Gigabit LAN 10/100/1000/2500 Mb/s
    - Dragon RTL8125BG
    - Supports Dragon 2.5G LAN Software
    - Smart Auto Adjust Bandwidth Control
    - Visual User Friendly UI
    - Visual Network Usage Statistics
    - Optimized Default Setting for Game, Browser, and Streaming Modes
    - User Customized Priority Control
  • Steckplätze
    CPU:
    - 1 x PCIe 4.0 x16 Slot (PCIE1), supports x16 mode*
    Chipset:
    - 1 x PCIe 4.0 x1 Slot (PCIE2)*
    - 1 x PCIe 4.0 x4 Slot (PCIE3), supports x4 mode*
    - 1 x M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module and Intel® CNVio/CNVio2 (Integrated WiFi/BT)

    *Unterstützt NVMe-SSD als Boot-Festplatte
  • Speicherplatz
    CPU:
    - 1 x Blazing M.2 Socket (M2_1, Key M), supports type 2260/2280 PCIe Gen5x4 (128 Gb/s) mode*
    Chipset:
    - 1 x Hyper M.2 Socket (M2_2, Key M), supports type 2230/2242/2260/2280 PCIe Gen4x4 (64 Gb/s) mode*
    - 4 x SATA3 6.0 Gb/s Connectors

    *Unterstützt Intel® Volume Management Device (VMD)
    Unterstützt NVMe-SSD als Boot-Festplatte
  • RAID
    - Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA Speichergeräte
  • USB
    CPU:
    - 1 x USB 3.2 Gen2x2 Type-C (Rear)
    Chipset:
    - 1 x USB 3.2 Gen1 Type-C (Front)
    - 5 x USB 3.2 Gen1 Type-A (3 Rear, 2 Front)
    - 6 x USB 2.0 (2 Rear, 4 Front)

    *All USB ports support ESD Protection
  • Anschluss
    - 1 x SPI TPM Header
    - 1 x Power LED and Speaker Header
    - 1 x RGB LED Header*
    - 2 x Addressable LED Headers**
    - 2 x CPU Fan Connector (4-pin) (Smart Fan Speed Control)***
    - 2 x Chassis Fan Connectors (4-pin) (Smart Fan Speed Control)***
    - 1 x AIO Pump Fan Connector (4-pin) (Smart Fan Speed Control)***
    - 1 x 24 pin ATX Power Connector
    - 1 x 8 pin 12V Power Connector (Hi-Density Power Connector)
    - 1 x 4 pin 12V Power Connector (Hi-Density Power Connector)
    - 1 x Front Panel Audio Connector
    - 2 x USB 2.0 Headers (Support 4 USB 2.0 ports)
    - 1 x USB 3.2 Gen1 Header (Supports 2 USB 3.2 Gen1 ports)
    - 1 x Front Panel Type C USB 3.2 Gen1 Header

    *Unterstützt insgesamt bis zu 12V/3A, 36W-LED-Strip

    **Support in total up to 5V/3A, 15W LED Strip

    ***CPU_FAN1 supports the fan power up to 1A (12W).
    CPU_FAN2, CHA_FAN1~2 and AIO_PUMP support the fan power up to 3A (36W).
    CPU_FAN2, CHA_FAN1~2 and AIO_PUMP can auto detect if 3-pin or 4-pin fan is in use.
  • Blende
    - 2 x Antennenmontagepunkte
    - 1 x HDMI Port
    - 1 x DisplayPort 1.4
    - 1 x USB 3.2 Gen2x2 Type-C Port (20 Gb/s)
    - 3 x USB 3.2 Gen1 Ports
    - 2 x USB 2.0 Ports
    - 1 x RJ-45 LAN Port
    - 1 x BIOS Flashback Button
    - HD Audio Jacks: Line in / Front Speaker / Microphone
  • Software und UEFI
    Software
    - ASRock Motherboard Utility (A-Tuning)
    - ASRock Dragon 2.5G LAN Software
    - ASRock Polychrome SYNC*
    UEFI
    - ASRock EZ Mode
    - ASRock Full HD UEFI
    - ASRock My Favorites in UEFI
    - ASRock Auto-Treiber-Installer
    - ASRock Sofort-Flash

    *Diese Tools können im Live Update & APP Shop heruntergeladen werden.
  • Produktzubehör
    - 1 x I/O Shield
    - 2 x SATA Data Cables
    - 2 x Screws for M.2 Sockets
    - 1 x Standoff for M.2 Socket
  • Formfaktor
    - Micro ATX Form Factor: 9.6-in x 8.6-in, 24.4 cm x 21.8 cm
  • Betriebssystem
    - Microsoft® Windows® 11 64-bit
  • Zertifizierungen
    - FCC, CE
    - ErP/EuP ready (ErP/EuP ready power supply is required)
