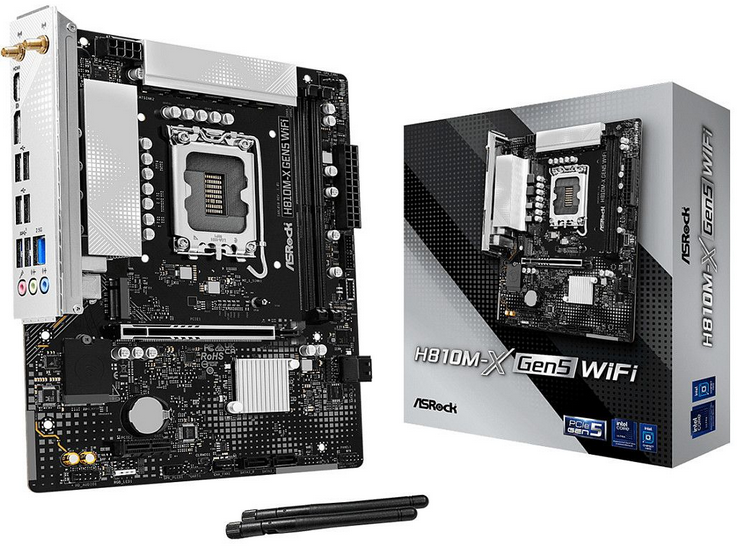

ASRock H810M-X GEN5 WIFI
NEU
Prozessor
Prozessorhersteller
Der Hersteller des Prozessors.
Intel
Prozessorsockel
Mechanische Komponente(n), die mechanische und elektrische Verbindungen zwischen einem Mikroprozessor und einer Leiterplatte (PCB) bereitstellt (bereitstellen). Dies ermöglicht den Austausch des Prozessors ohne Löten.
LGA 1851 (Socket V1)
Kompatible Prozessoren
Ein Prozessor, der mit diesem Gerät kompatibel ist, gehört zu einer "Serie", die Teil einer "Familie" ist, oder in einigen Fällen zur gleichen "Familie", z.B. Celeron D, Celeron G, Celeron M.
Intel Core Ultra (Series 2)
Speicher
Unterstützte Arbeitsspeicher
Arten von Speichermedien, die mit dem Produkt verwendet werden können.
DDR5-SDRAM
Anzahl der Speichersteckplätze
2
Arbeitsspeicher Typ
A memory slot, also known as a memory socket or RAM slot, is what allows computer memory (RAM) to be inserted into the computer. Depending on the motherboard, there will usually be 2 to 4 memory slots (sometimes more on high-end motherboards). The most common types of RAM are SDRAM and DDR for desktop computers and SODIMM for laptop computers, each having various types and speeds.
DIMM
Speicherkanäle
Zweikanalig
ECC-Kompatibilität
Nicht-ECC
RAM-Speicher maximal
Der maximale interne Datenspeicher, der im Gerät verfügbar ist.
128 GB
Unbuffered Speicher
Speicher-Controller
Unterstützte Speicherlaufwerk-Schnittstellen
SATA III, M.2
Grafik
HDCP
HDCP (Digital Content Protection) mit hoher Bandbreite ist eine Form des digitalen Kopierschutzes, um das Kopieren von digitalen Audio- und Videoinhalten beim Verbindungsaufbau zu verhindern.
HDCP-Version
2.3
Interne E/A-Anschlüsse
Anzahl USB 2.0 Schnittstellen
The end of a cable with a USB 2.0 connector. USB 2.0 was released in April 2000 (now called "Hi-Speed"), adding higher maximum signaling rate of 480 Mbit/s (effective throughput up to 35 MB/s or 280 Mbit/s), in addition to the "USB 1.x Full Speed" signaling rate of 12 Mbit/s. USB 2.0 connectors are usually colored black.
1
USB 3.2 Gen 1 (3.1 Gen 1) Anschlüsse
This is a connector (normally attached to a cable) for USB 3.0. USB 3.0 is the second major revision of the Universal Serial Bus (USB) standard for computer connectivity. First introduced in 2008, USB 3.0 adds a new transfer mode called "SuperSpeed," (distinguishable from USB 2.0 by either the blue colour of the port or the initials SS) capable of transferring data at up to 5Gbit/s—more than ten times as fast as the 480 Mbit/s top speed of USB 2.0.
2
SATA III Anschlüsse
Serial ATA (Advanced Technology Attachment) (SATA) is a computer bus interface that connects host bus adapters to mass storage devices such as hard disk drives and optical drives. SATA III (revision 3.x) interface, formally known as SATA 6Gb/s, is a third generation SATA interface running at 6.0Gb/s. The bandwidth throughput, which is supported by the interface, is up to 600MB/s. This interface is backwards compatible with SATA 3 Gb/s interface.
4
Front Panel Audiostecker
ATX Stromstecker (24-pol.)
CPU Ventilatorstecker
Anzahl der CPU-Lüfteranschlüsse
1
Zahl der Chassisventilatorstecker
1
EPS Stromstecker (8-pin)
TPM-Anschluss
RGB-LED-Stiftleiste
E/A-Anschlüsse auf der Rückseite
Anzahl USB 2.0 Anschlüsse
USB 2.0-Ports haben eine Datentransferrate von 480 Mbps und sind rückwärtskompatibel mit USB 1.1-Ports. Sie können alle Arten von Peripheriegeräten an sie anschließen.
4
USB 3.2 Gen 1 (3.1 Gen 1) Anzahl der Anschlüsse vom Typ A
2
Anzahl Ethernet-LAN-Anschlüsse (RJ-45)
Anzahl der Ethernet LAN (RJ-45) -Ports (Verbindungsschnittstellen) im Gerät. Ethernet-LAN-Ports (RJ-45) ermöglichen die Verbindung eines Computers mit dem Ethernet.
1
Anzahl HDMI-Anschlüsse
Die Anzahl der Buchsen (Ports) für HDMI-Verbindungen. HDMI (High-Definition Multimedia Interface) ist eine kompakte Audio/Video-Schnittstelle zum Übertragen von unkomprimierten Videodaten und komprimierten oder unkomprimierten digitalen Audiodaten von einem HDMI-kompatiblen Gerät (dem "Quellgerät") an einen kompatiblen Computermonitor, Videoprojektor, Digitalfernseher oder digitales Audiogerät. HDMI ist ein digitaler Ersatz für bestehende analoge Videostandards.
1
Anzahl DisplayPort Anschlüsse
Anzahl der DisplayPorts. Ein DisplayPort ist eine von der Video Electronics Standards Association (VESA) entwickelte digitale Display-Schnittstelle. Die Schnittstelle wird hauptsächlich verwendet, um eine Videoquelle mit einem Anzeigegerät wie einem Computermonitor zu verbinden. Darüber hinaus kann sie auch dazu verwendet werden, Audio, USB und andere Arten von Daten zu übertragen.
1
E/A-Anschlüsse auf der Rückseite
DisplayPorts-Version
1.4
Line-in
Mikrofon-Eingang
The socket where a microphone is connected to the device.
Netzwerk
Ethernet/LAN
Für eine kabelgestützte Verbindung ist eine Ethernet-LAN-Schnittstelle (Local Area Network) vorhanden.
Ethernet Schnittstellen Typ
2.5 Gigabit Ethernet
LAN-Controller
Dragon RTL8125BG
WLAN
Populäre Technologie, mit der ein elektronisches Gerät über Funk Daten austauschen oder sich drahtlos mit dem Internet verbinden kann.
Top WLAN-Standard
Das Gerät kommuniziert per WLAN mit einer hohen Übertragungsqualität.
Wi-Fi 6 (802.11ax)
WLAN-Standards
The type of wireless local area network (LAN): ad-hoc (where units in a network communicate peer-to-peer) or Infrastructure (units communicate with each other via an access point). A LAN interconnects computers in a small area e.g. home, school or office.
802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax)
Bluetooth
Bluetooth ist eine Low-Power-Radio-Technologie, die entwickelt wurde, um die Kabel und Leitungen zu ersetzen, welche derzeit verwendet werden, um elektronische Geräte wie PCs, Drucker sowie eine Vielzahl von Handheld-Geräten wie Mobiltelefone zu verbinden oder zu vernetzen. Durch die Nutzung der Radiowellen-Konnektivität hat eine Bluetooth-fähiges Gerät eine konstante, beständige Verbindung zum gewählten Browser. Dies erspart dem Nutzer zum Beispiel die Mühe, sich anmelden zu müssen, um E-Mails oder News-Updates zu überprüfen.
Bluetooth-Version
Der Typ der Bluetooth-Technologie in dem Produkt, z.B. Bluetooth Smart (v4.0).
5.3
Merkmale
Motherboard Chipsatz
Der Chipsatz verbindet den Mikroprozessor mit dem Rest des Motherboards.
Intel H810
Audio-Chip
Realtek ALC897
Audio Kanäle
Ein Audioausgangskanal ist eine elektrische Schaltung, die als Pfad für ein erzeugtes Signal dient. Ein Gerät kann mehrere Audio-Ausgangskanäle haben.
7.1 Kanäle
Komponente für
Wofür dieses Produkt als Teil von oder Komponente für verwendet wird.
PC
Motherboardformfaktor
Design des Motherboards (ATX, BTX usw.).
micro ATX
Motherboard Chipsatz Familie
Die Art des Motherboard-Chipsatzes, z.B. Intel, AMD.
Intel
Unterstützt Windows-Betriebssysteme
Windows vesions wich can be used with the device.
Windows 11 x64
Erweiterungssteckplätze
PCI Express x1-Steckplätze (Gen 4.x)
1
PCI Express x16-Steckplätze (Gen 5.x)
1
Anzahl der M.2 (M)-Steckplätze
1
BIOS
BIOS-Typ
The BIOS (Basic Input/Output System) initializes and tests system hardware components, and loads a bootloader or an operating system from a mass memory device. The BIOS additionally provides abstraction layer for the hardware, i.e. a consistent way for application programs and operating systems to interact with the keyboard, display, and other input/output devices. There are several types of BIOS, including the motherboard ROM BIOS, video BIOS, drive controller BIOS, network adapter BIOS, and SCSI adapter BIOS.
UEFI AMI
BIOS-Speichergröße
256 Mbit
Gewicht und Abmessungen
Breite
Maß oder Ausmaß eines Objektes von einem seitlichen Rand zum anderen.
244 mm
Tiefe
Die Entfernung vom vorderen zum hinteren Rand eines Objektes.
193 mm
Lieferumfang
Mitgelieferte Kabel
SATA
Antenne enthalten
An antenna (aerial) is built into the product or comes with it.
